AgentFlow is a lightweight observability layer for OpenCode agent workflows. It captures every tool invocation — task delegations, file edits, shell commands — and surfaces a real-time, structured trace through a browser dashboard.

No database. No external services. One Bun process, file-based storage, live SSE streaming.

---

Why AgentFlow?

When running multi-agent OpenCode sessions, understanding what happened and why becomes critical. AgentFlow answers:

• What did each agent do? — Hierarchical task tree of every invocation
• How long did it take? — Chronological timeline with durations
• Who delegated to whom? — Agent dependency graph with critical path analysis
• What evidence supports each step? — Raw inputs, outputs, and errors per trace node

---

Features

• ⚡ Real-time capture — Zero-dependency OpenCode plugin writes every tool event (task, bash, write, edit) to append-only JSONL files as they execute
• 🔄 Live SSE streaming — Two modes: raw event firehose by session, or typed PatchEnvelope events by run with sequence-based replay (after=N)
• 🌳 Trace engine — In-process pipeline normalizes raw events into structured RunSnapshot records: a task tree (TraceNode[]), a chronological log (TimelineItem[]), and an agent dependency graph (SessionGraph)
• 📊 Dashboard UI — React 18 + ReactFlow + Tailwind with three panels: Work Trace (tree/graph toggle), Evidence Panel, and Timeline
• 🧩 Critical path analysis — Computes the longest-duration chain through the agent graph, highlighting bottlenecks
• 🔌 Zero external dependencies — Bun native HTTP, no Express, no Redis, no Postgres. Everything is file-based (JSONL + JSON snapshots)
• 📁 File-based persistence — Runs, snapshots, and patches stored as plain JSON/JSONL in .agentflow/runs/. Raw events are always the source of truth

---

Quick Start

# Install
npm install @sferralove/agentflow

# Initialize — creates .agentflow/ + copies plugin to OpenCode
npx agentflow init

# Build TypeScript + dashboard
npm run build

# Start server (default :3001)
npx agentflow serve

# Open the dashboard
open http://localhost:3001

With the plugin enabled in OpenCode, every agent session emits events that appear live on the dashboard — no configuration required.

Requirements

• Bun ≥ 1.2.0 (required runtime — Node.js is not supported)
• OpenCode ≥ 1.x (for plugin integration)
• npm (for dashboard build)

---

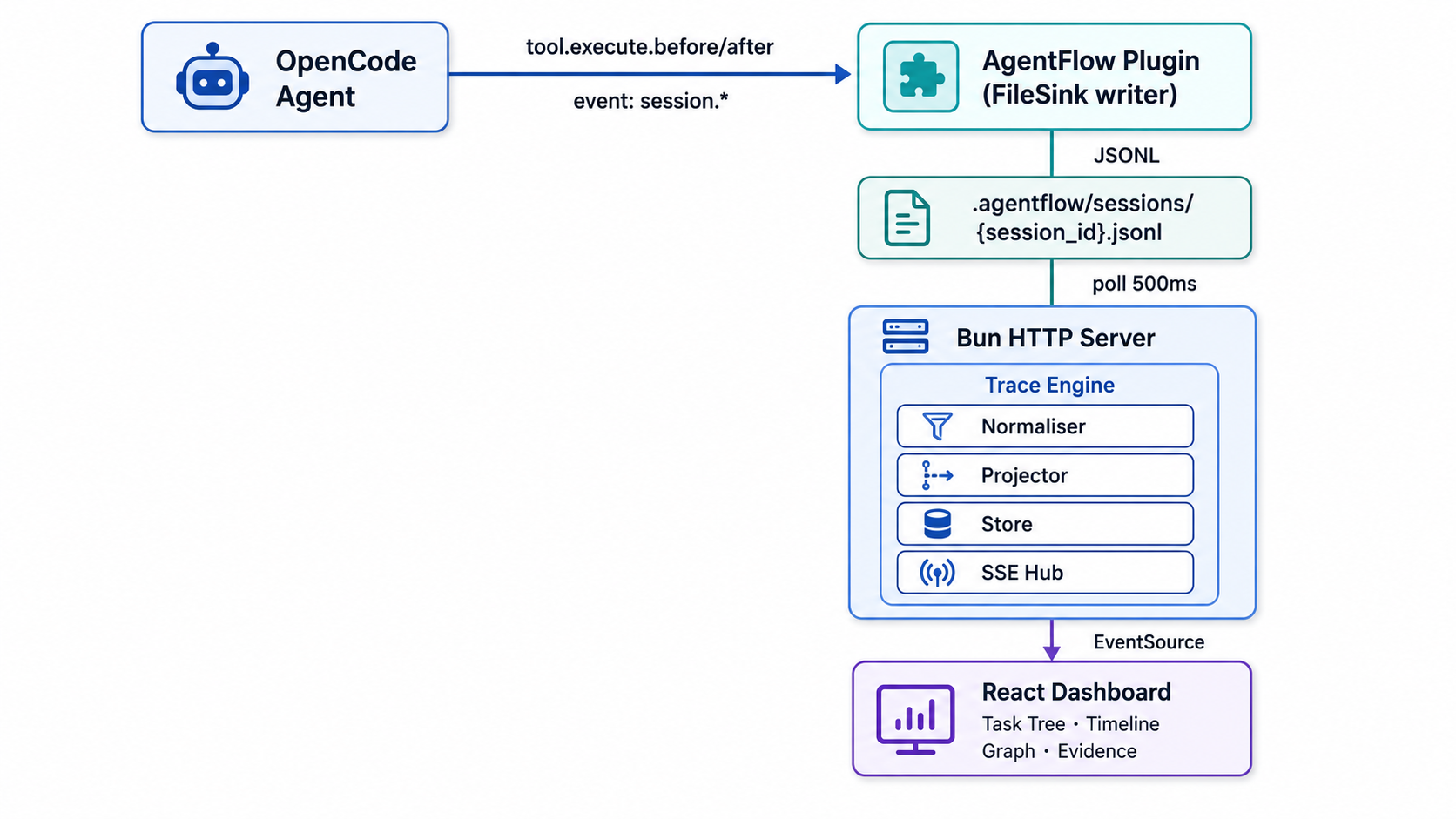

Architecture

The dashboard renders the trace engine output: hierarchical task tree (left), evidence panel (right), and chronological timeline (bottom).

Layer	Responsibility
Event normalizer	Classifies each raw AgentEvent into a semantic NormalizedEventKind (e.g. delegation.started, command.executed, file.changed)
Trace projector	Incrementally builds a RunSnapshot — trace nodes, timeline items, and the agent graph — from the event stream. Deduplication is handled by event ID
Run store	Persists snapshots and patch history to .agentflow/runs/{runId}/ as plain JSON/JSONL files
SSE hub	Maintains an in-memory patch history per run and registers connected clients. Replays missed patches on connect via the after=N cursor

All four layers run in-process with zero additional dependencies. Persistence is fire-and-forget; the event pipeline never blocks.

---

CLI

Command	Description
agentflow init	Initialize .agentflow/ directories and copy the OpenCode plugin
agentflow serve [port]	Start the Bun HTTP server (default: 3001)
agentflow stop	Gracefully stop the running server via PID file
agentflow status	Check if the server is running or stopped

---

API

Run-first endpoints (v1)

GET /health

Health check. Returns server status, connected SSE clients, and tracked sessions.

{ "status": "ok", "clients": 2, "sessions": 1 }

GET /api/runs/current

Full RunSnapshot from the in-memory projector — trace nodes, timeline, graph, raw events.

{
  "run": { "id": "run_session_1", "status": "running", ... },
  "traceNodes": [...],
  "timelineItems": [...],
  "graph": { "nodes": [...], "edges": [...] },
  "rawEvents": [...]
}

GET /api/runs

List of active runs.

{ "runs": [{ "id": "run_session_1", "status": "running", ... }] }

GET /api/runs/:runId/snapshot

Persisted RunSnapshot for a specific run ID, loaded from disk.

GET /api/stream?run=current&after=0

SSE stream of typed PatchEnvelope events. Named SSE events per patch type:

Event Name	Payload	Trigger
raw.event	AgentEvent	Every raw event ingested
trace.node.upserted	TraceNode	Node created or status changed
trace.node.completed	TraceNode	Node reaches completed/failed
timeline.item.upserted	TimelineItem	Timeline entry added
graph.node.upserted	AgentNode	Graph node created or updated
graph.edge.upserted	AgentEdge	Graph edge created
run.updated	Run	Run metadata changed

event: trace.node.upserted
id: 3
data: {"id":"patch_3","runId":"run_session_1","sequence":3,"type":"trace.node.upserted","payload":{...}}

Legacy endpoints (pre-v1)

Endpoint	Description
GET /api/stream?session=X	SSE stream of raw JSONL events for a session
GET /api/events?session=X&since=TS&tree=true	JSON events (all sessions when tree=true)
GET /api/agents/X?tree=true	Agent graph with nodes and edges
GET /api/sessions	List of available sessions

---

Dashboard

The dashboard provides three integrated panels:

1. Work Trace — Hierarchical task tree of trace nodes. Each node shows status, kind, confidence, and evidence count. Toggle to AgentGraph view for the ReactFlow dependency graph with critical path highlighting.
2. Evidence Panel — Select a trace node to inspect its backing raw events: inputs, outputs, errors, and timestamps.
3. Timeline — Chronological log of all events. Click any entry to jump to the corresponding trace node.

Development mode

# Vite HMR dev server on :3000
npm -C dashboard run dev

# API server on :3001 (separate terminal)
npx agentflow serve 3001

---

Development

npm run build          # TypeScript + dashboard (order matters)
npm test               # Full test suite (bun:test)
npx tsc --noEmit       # TypeScript check only

Project structure

src/
  cli.ts, plugin.ts, server.ts, types.ts, index.ts
  trace/             # Trace engine (normalizer, projector, graph builder)
  run/               # Persistence (run store)
  stream/            # SSE delivery (hub)
dashboard/
  src/hooks/          # useRunTrace, useSSE
  src/components/     # AgentGraph, TraceTree, TraceEvidencePanel, TraceTimeline, Header ...
  src/utils/          # Critical path computation, timeline filtering
test/                 # 10 test files (bun:test)

---

License

MIT
