Dashboard

A real-time browser-based Kanban board that visualizes agent activity in OpenCode. Watch beads (tasks) move through agent stages -- from ready to done -- as AI agents work on them. Columns are generated dynamically based on your configured agents.

Screenshots

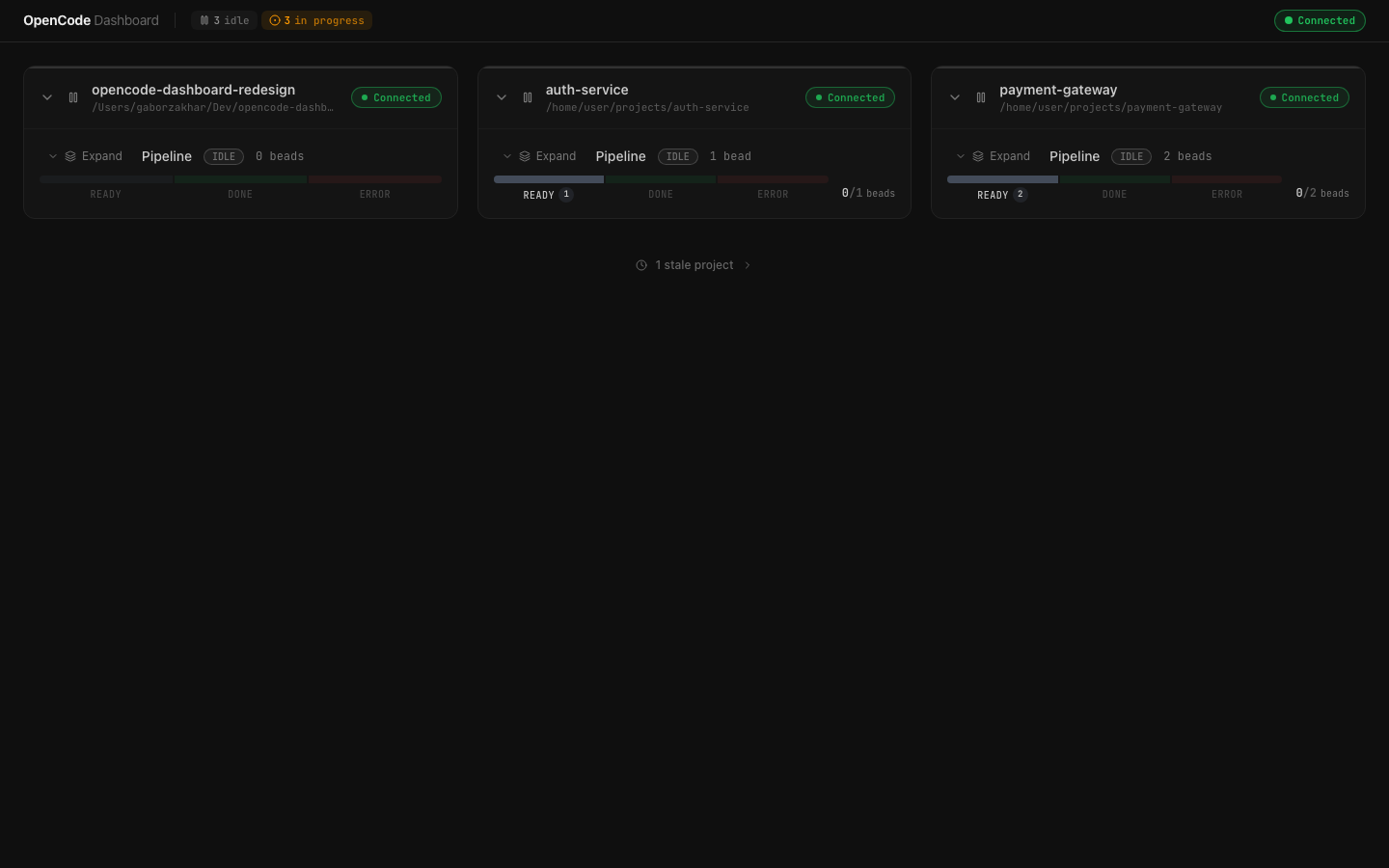

Multi-project overview

Monitor multiple OpenCode sessions simultaneously. Each project card shows connection status, pipeline state, and bead progress at a glance.

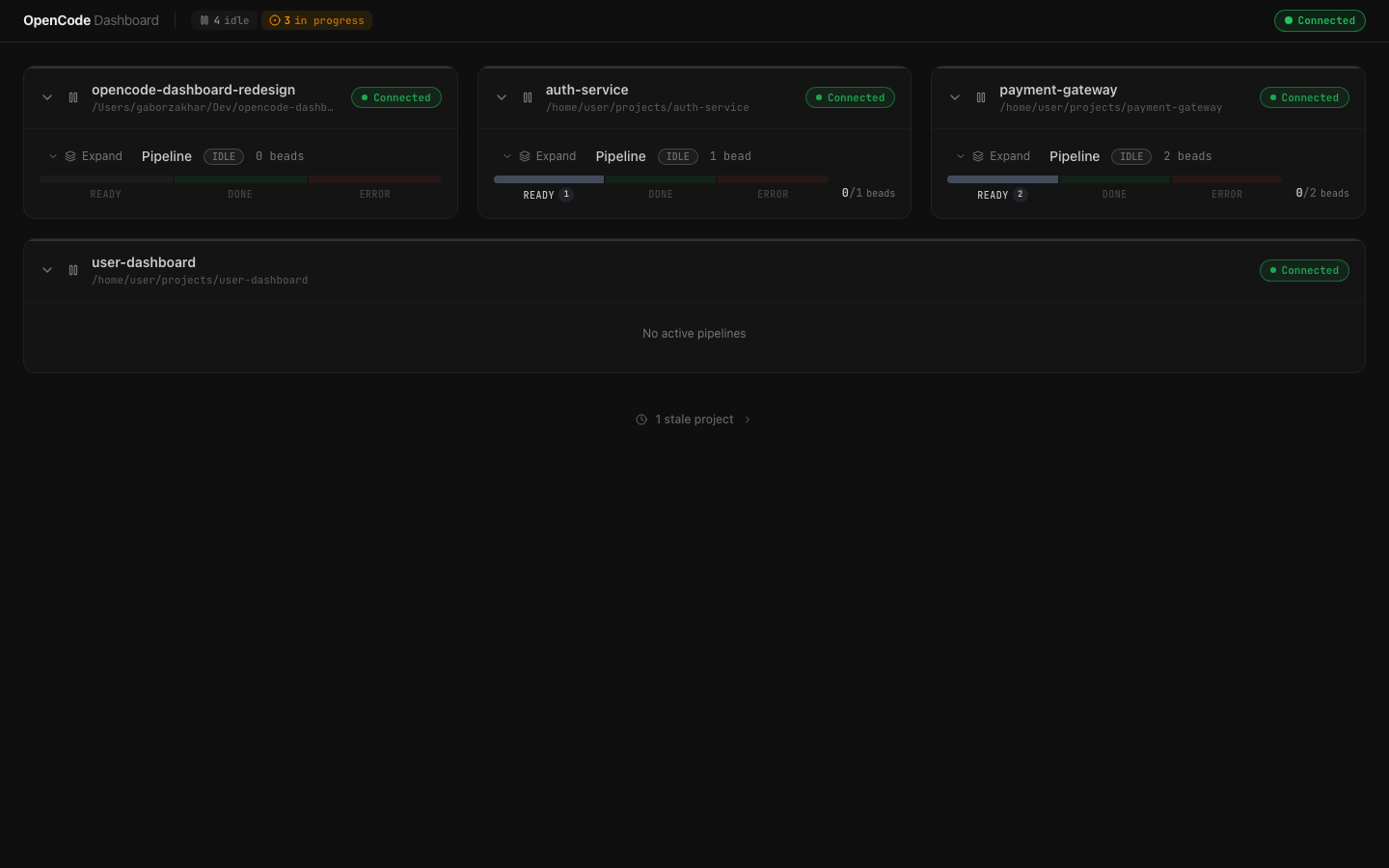

Full dashboard with stale projects

Projects that have disconnected are grouped separately, keeping the focus on active work.

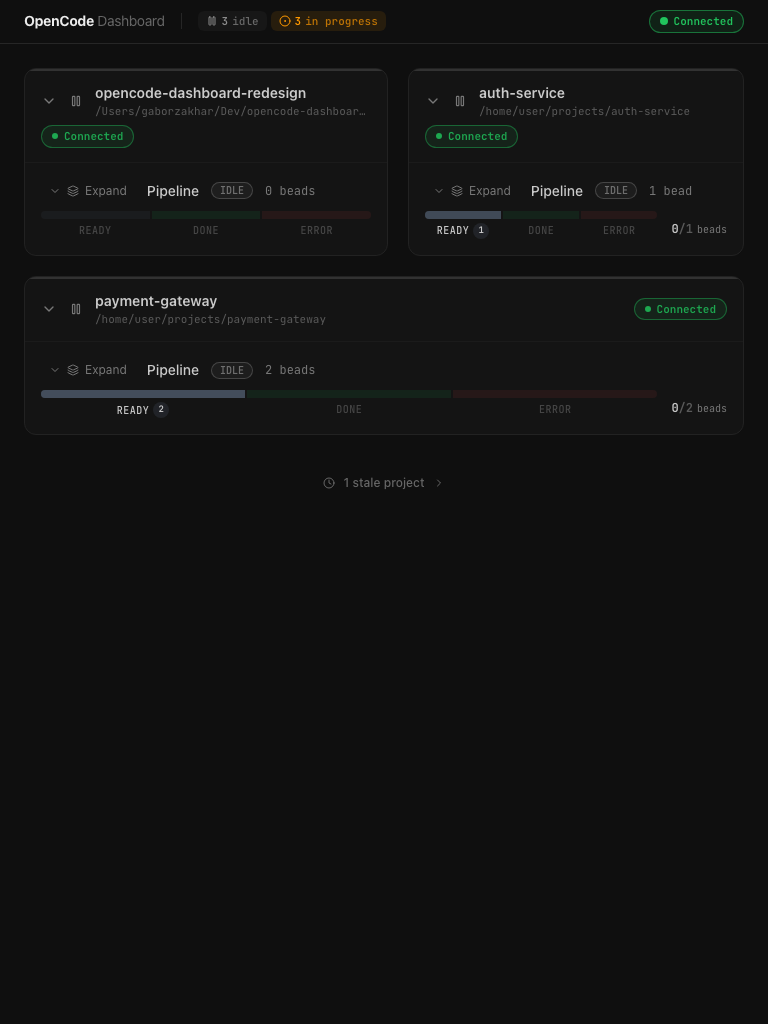

Responsive layout

The dashboard adapts to smaller viewports, reflowing project cards into a compact layout.

Installation

1. Add the plugin to your OpenCode config:

// opencode.json
{
  "plugin": ["opencode-dashboard"]
}

OpenCode will install the plugin automatically on next launch.

1. Run the setup command to install slash commands and (optionally) agent definitions:

npx opencode-dashboard setup

This will prompt you to choose between global (~/.config/opencode/) or per-project (.opencode/) installation. It copies the /dashboard-start, /dashboard-stop, and /dashboard-status commands, plus the shipped agent definitions. Existing files are never overwritten.

Usage

Start the Dashboard

Use the slash command in OpenCode:

/dashboard-start

Or use the CLI directly:

npx opencode-dashboard start

The dashboard will be available at http://localhost:3333.

After the first activation, the dashboard auto-starts on subsequent OpenCode sessions — you don't need to run /dashboard-start again. This works across terminals: if you open a second OpenCode session while the dashboard is already running, it connects automatically.

Check Status

/dashboard-status

Or via CLI:

npx opencode-dashboard status

Stop the Dashboard

/dashboard-stop

Or via CLI:

npx opencode-dashboard stop

This also disables auto-start — the dashboard will stay dormant on future sessions until you explicitly run /dashboard-start again.

Custom Port

npx opencode-dashboard start --port 4000

Or set the DASHBOARD_PORT environment variable.

How It Works

The dashboard has three components:

OpenCode Plugin (plugin/index.ts)
       |
       |  POST /api/plugin/event
       v
  Bun Server (server/index.ts)
       |
       |  SSE /api/events
       v
  React Dashboard (dist/)

1. Plugin -- An OpenCode plugin that hooks into agent lifecycle events, discovers configured agents, tracks bead state via bd list --json, and pushes structured events to the server. Registers custom tools (dashboard_start, dashboard_stop, dashboard_status, dashboard_open) for controlling the dashboard from within OpenCode.
2. Server -- A Bun HTTP server that aggregates state from connected plugins, persists it to disk, serves the dashboard frontend, and broadcasts updates to browser clients via Server-Sent Events (SSE). The server automatically shuts down after 5 minutes of inactivity (no connected plugins or browser clients) to avoid leaving orphaned processes. Multiple OpenCode sessions share a single server instance — it only shuts down when all sessions have disconnected.
3. Dashboard -- A React SPA that renders a dynamic Kanban board with real-time updates, animated card transitions, and connection resilience.

Kanban Columns

Columns are generated dynamically based on your configured agents. Three fixed columns are always present:

Column	Description
Ready	Open beads not yet claimed by an agent
Done	Bead closed successfully
Error	Bead blocked, failed, or abandoned

Agent columns appear between Ready and Done, one per discovered agent. For example, if you have orchestrator, pipeline-builder, pipeline-reviewer, and pipeline-committer agents configured, the board will show columns for each of them. Column colors are pulled from the agent's frontmatter color field when available.

Development

Prerequisites

• Bun >= 1.0
• OpenCode with plugin support
• A project using bd (beads) for issue tracking

Clone and Install

git clone https://github.com/GZakhar88/opencode-agents-dashboard.git
cd opencode-agents-dashboard
bun install

Running Locally (Frontend + Server only)

This starts the dashboard UI and server without the OpenCode plugin. Useful for working on the frontend or server code. No OpenCode or bd needed.

# Terminal 1: Start the Bun API server (port 3333)
bun run server

# Terminal 2: Start the Vite dev server with HMR (port 5173)
bun run dev

Open http://localhost:5173. The Vite dev server proxies /api/* requests to the Bun server at localhost:3333. The board will show "No projects connected" until a plugin registers — you can test by sending events directly:

# Register a fake plugin
curl -X POST http://localhost:3333/api/plugin/register \
  -H 'Content-Type: application/json' \
  -d '{"projectPath": "/tmp/test", "projectName": "test-project"}'
# Returns: {"pluginId": "some-uuid"}

# Push an event (use the pluginId from above)
curl -X POST http://localhost:3333/api/plugin/event \
  -H 'Content-Type: application/json' \
  -d '{"pluginId": "PASTE_ID_HERE", "event": "bead:discovered", "data": {"bead": {"id": "test-1", "title": "Test bead", "status": "open", "priority": "medium"}}}'

Running Locally (Full end-to-end with OpenCode)

This connects the plugin to a live OpenCode session so you can test the full pipeline: plugin hooks -> server -> dashboard.

Step 1: Symlink the plugin into your project

From the project directory where you run OpenCode (not this repo):

# Create the plugins directory if it doesn't exist
mkdir -p /path/to/your/project/.opencode/plugins

# Symlink the plugin entry point
ln -sf /path/to/opencode-agents-dashboard/plugin/index.ts \
       /path/to/your/project/.opencode/plugins/dashboard.ts

OpenCode auto-loads all .ts files from .opencode/plugins/ on startup. The symlink's relative imports resolve from the real file's location, so ../shared/types, ../server/pid, etc. all work.

Step 2: Install commands and agents

# From this repo's directory
bun run bin/cli.ts setup

Choose "project" to install into /path/to/your/project/.opencode/, or "global" for ~/.config/opencode/. This copies the /dashboard-start, /dashboard-stop, /dashboard-status commands and agent definitions.

Step 3: Launch OpenCode and start the dashboard

# In your project directory
DASHBOARD_DEBUG=1 opencode

Then in the OpenCode TUI, type /dashboard-start. The plugin will spawn the Bun server and open the dashboard at http://localhost:3333.

DASHBOARD_DEBUG=1 enables verbose plugin logging to stderr — useful for seeing what the plugin is doing.

Step 4: (Optional) Run Vite dev server for frontend HMR

If you're working on the frontend and want hot-reload instead of the pre-built dist/:

# In this repo's directory
bun run dev

Open http://localhost:5173 instead of :3333. Vite proxies API calls to the running Bun server.

Cleanup

To disconnect the plugin from your project:

rm /path/to/your/project/.opencode/plugins/dashboard.ts

Testing

bun test

File	What it tests
src/hooks/useBoardState.test.ts	Board state reducer -- all 13 SSE event handlers
src/hooks/useEventSource.test.ts	SSE connection, backoff, retry logic
src/lib/format.test.ts	Formatting utilities (elapsed time, priority labels)
server/state.test.ts	Server state manager (event processing, persistence)
server/routes.test.ts	HTTP route handlers (register, event, heartbeat)
server/sse.test.ts	SSE client management and broadcasting
server/pid.test.ts	PID file and autostart marker management
server/diffBeadState.test.ts	Bead snapshot diffing algorithm

Building

bun run build        # Build the frontend (outputs to dist/)
bun run build:check  # Run TypeScript type checking

Environment Variables

Variable	Default	Description
DASHBOARD_PORT	3333	Port for the dashboard server
DASHBOARD_DEBUG	(unset)	Set to 1 to enable verbose plugin logging to stderr
DASHBOARD_IDLE_TIMEOUT_MS	300000 (5 min)	Idle auto-shutdown timeout in milliseconds. Set to 0 to disable

Project Structure

opencode-dashboard/
├── agents/                     # Shipped agent definitions (optional install)
│   ├── orchestrator.md
│   ├── pipeline-builder.md
│   ├── pipeline-refactor.md
│   ├── pipeline-reviewer.md
│   └── pipeline-committer.md
├── commands/                   # Slash commands (installed via setup)
│   ├── dashboard-start.md
│   ├── dashboard-stop.md
│   └── dashboard-status.md
├── plugin/
│   └── index.ts                # Main plugin entry (npm distribution)
├── server/
│   ├── index.ts                # Server entry point (Bun.serve)
│   ├── routes.ts               # HTTP route handlers (7 endpoints)
│   ├── sse.ts                  # SSE client management & broadcasting
│   ├── state.ts                # State manager (events -> state, persistence)
│   ├── pid.ts                  # PID file management
│   └── PLUGIN_EVENTS.md        # Event reference documentation
├── shared/
│   └── types.ts                # Shared TypeScript types
├── bin/
│   └── cli.ts                  # CLI entry (npx opencode-dashboard)
├── src/                        # React frontend source
│   ├── main.tsx
│   ├── App.tsx
│   ├── hooks/                  # SSE connection, board state reducer
│   ├── components/             # Kanban board, cards, columns
│   └── lib/                    # Utilities, constants, API client
├── plugins/
│   └── dashboard-bridge.ts     # Local dev plugin (not published)
└── dist/                       # Built frontend (generated by vite build)

API Reference

Plugin API (used by the OpenCode plugin)

Method	Endpoint	Description
POST	/api/plugin/register	Register a plugin instance
POST	/api/plugin/event	Push an event
POST	/api/plugin/heartbeat	Send heartbeat
DELETE	/api/plugin/:id	Deregister a plugin

Dashboard API (used by the frontend)

Method	Endpoint	Description
GET	/api/state	Full board state as JSON
GET	/api/events	SSE stream for real-time updates
GET	/api/health	Server health check

Tech Stack

• Runtime: Bun
• Frontend: React 19, TypeScript 5.7
• Build: Vite 6
• Styling: Tailwind CSS 3.4, shadcn/ui
• Animation: Framer Motion 11.15
• State: React useReducer with SSE-driven updates
• Transport: Server-Sent Events (SSE) with exponential backoff

Troubleshooting

Dashboard shows "No projects connected"

• Verify OpenCode is running with the plugin installed.
• Check that agents are configured (in opencode.json, .opencode/agents/, or ~/.config/opencode/agents/). Enable debug logging: DASHBOARD_DEBUG=1 opencode.
• Confirm the server is reachable: curl http://localhost:3333/api/health.

Beads not showing on the board

• Ensure the project uses bd for issue tracking (bd list should return issues).
• The plugin runs bd list --json to discover beads. If bd is not installed or not initialized in the project, no beads will appear.

Server state persists across restarts

The server saves state to server/.dashboard-state.json. Delete this file to start fresh:

rm server/.dashboard-state.json

Dashboard keeps auto-starting (or won't auto-start)

The plugin stores an autostart marker at ~/.cache/opencode/opencode-dashboard.autostart. To reset auto-start behavior:

# Disable auto-start
rm ~/.cache/opencode/opencode-dashboard.autostart

# Or just run /dashboard-stop — it clears the marker for you

If the dashboard should auto-start but isn't, run /dashboard-start once to re-create the marker.

License

MIT
